Types of Screwdrivers and their uses – Mechanical Education

Screwdriver:

A Screwdriver is a simple and common tool used for fitting or removing a screw. The turning moment created by the screwdriver can be done by manual or electrical. A screwdriver is the most common and performs a simple function with a simple design we use ever, but there are several types developed according to the changes that came across. A screwdriver has a plastic or rubber handle and a grip on it and has different types of tips on the end. We need to use an exact screwdriver to work on a screw. This is important because different shapes of the screwdriver transmit different torque and apply a different amount of pressure on it. To withstand turning movement, pressure, and corrosion resistance, the material should stronger and harder so most of them are made with alloy steel.

Types of Screwdrivers and there uses:

Flat Head Screwdriver:

Flat Head screwdriver is the most common type we use ever, this is the simple and widely used compared to anyone, from many years this has been using for fitting or removing purpose, the shape at the tip has a wedge-shaped flat tip. we can find this screwdriver in most of the tool kits.

This type of tool cannot transmit more torque and there is an easy chance in slipping so we need to choose the exact size required to work on a screw. and we think most of the flathead screwdrivers should need a sharp end but it is not true, the sharp end has a higher slipping rate and may damage the top flat grip of a screw or the tip of the tool. this type of tool needs a little flat surface at the end which avoids easy slipping from the screw head.

Image Source

Phillips Screwdriver:

Phillips type screwdriver has mostly used in the automobile industry which has a cross(X) shape at the tip of the tool, this type of tool used to turn the screw with more torque to achieve a required fit but has a little slipping rate. it has more grip to handle. by using only the required size we can work efficiently.

Image Source

Square Screwdriver:

This type of screwdriver name itself explains the shape of the tool, this is also called as Robertson screwdriver, it has a square shape at the end of the tool, this type of tool does not slip from screw due to the fixing between tool and screw has clear tolerance. it can transfer more torque and high load can apply on it to turn the nut compared to most of the tools and we can achieve more grip due to the shape.

Image Source

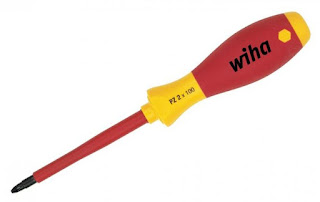

Pozidriv Screwdriver:

Pozidriv tool is the same as the Phillips tool but this is developed to increase the torque, contact, decreasing the slip rate, etc. In the pozidriv tool, the contact surface area is more and this tool is more stable. there is also a high torque transmission possible with less slipping from work. this tool has a self-centering design to fit in work accurately. this type of tool has different sizes which can choose according to the work.

Image Source

Hexagonal Screwdriver:

The hexagonal screwdriver is also called as hex. it has six sides the very common types of screws are used in construction. this tool has a hexagonal shape at the tip and it has more grip and possible to transfer more torque and less slipping from work. german company has developed this type of tool and has a patent on it. this tool can be used to work on nuts, bolts most of the nuts and bolts are using this shape for fixing so the hex tool is highly used in nowadays. we should aware of different sizes in this tool only an exact size is used to tighten or loosen because there are various sizes in this shape that may get confused.

Image Source

Torx Screwdriver:

Torx has a star shape at the tip of the tool and the same shape on the screw.

This type of screws is mostly used in the automobile industry. most of these shaped screws are used in vehicles, electronic devices, etc. due to the increased in Torx screwdrivers, Torx screws are highly used in automobile, construction, electronic goods, etc.

This is more stable and efficient.

 Image Source
